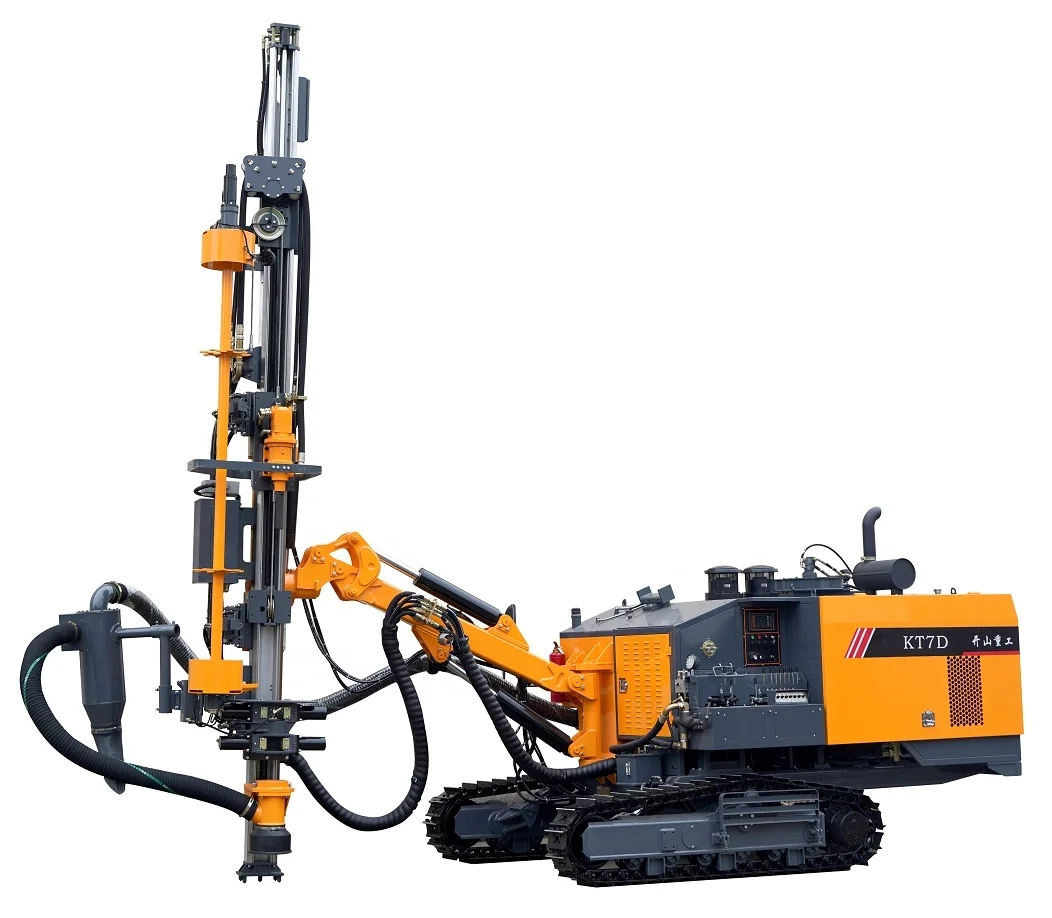

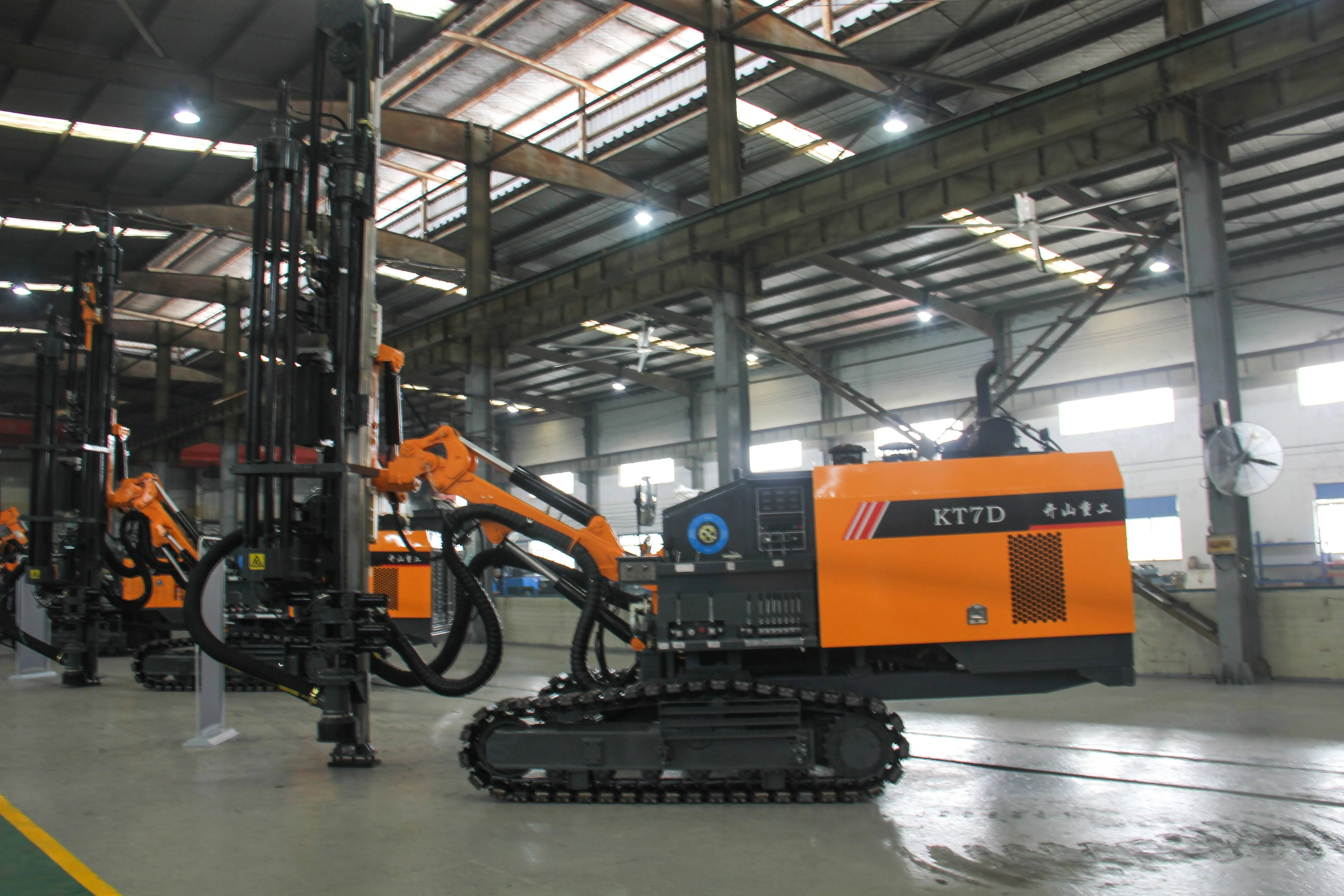

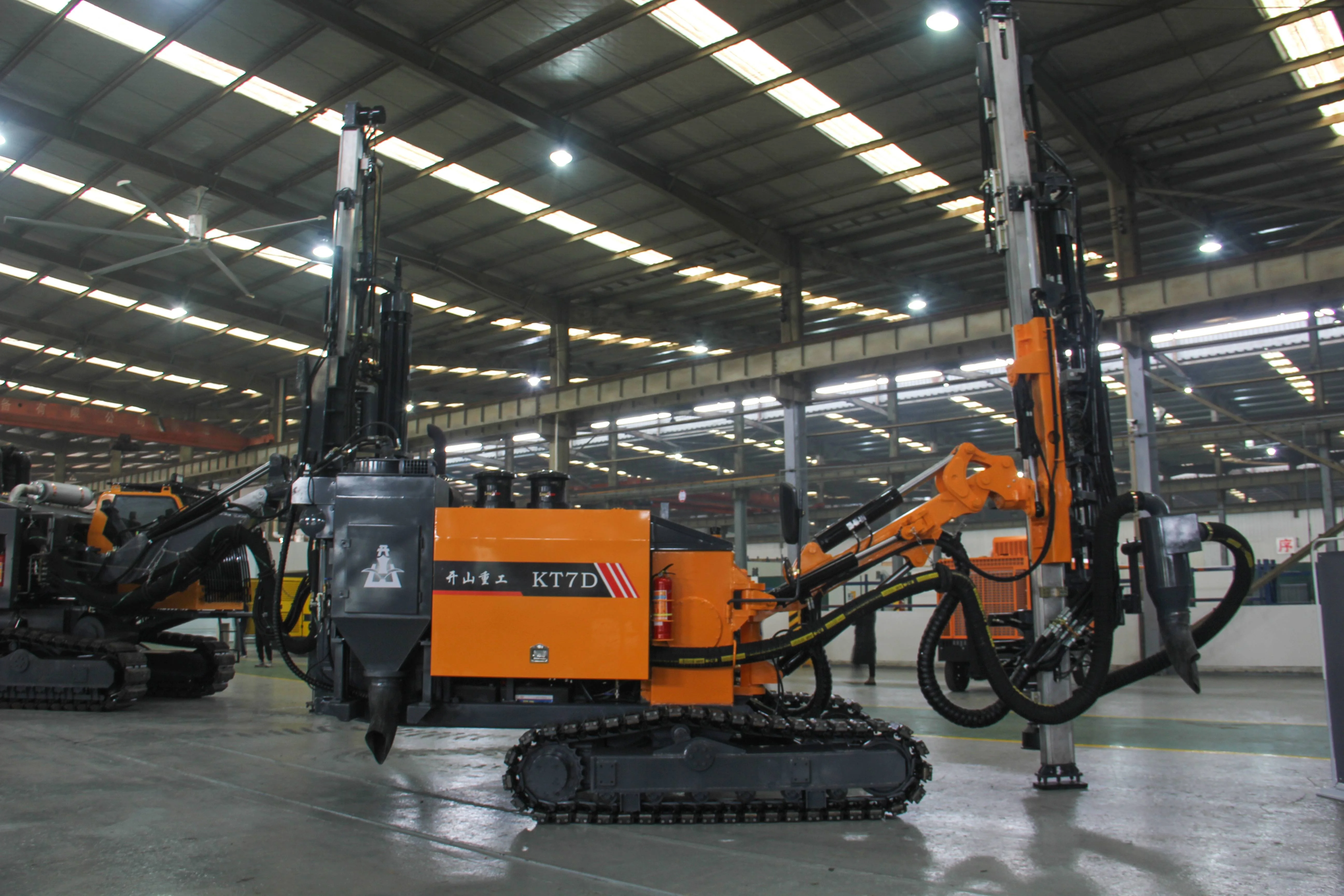

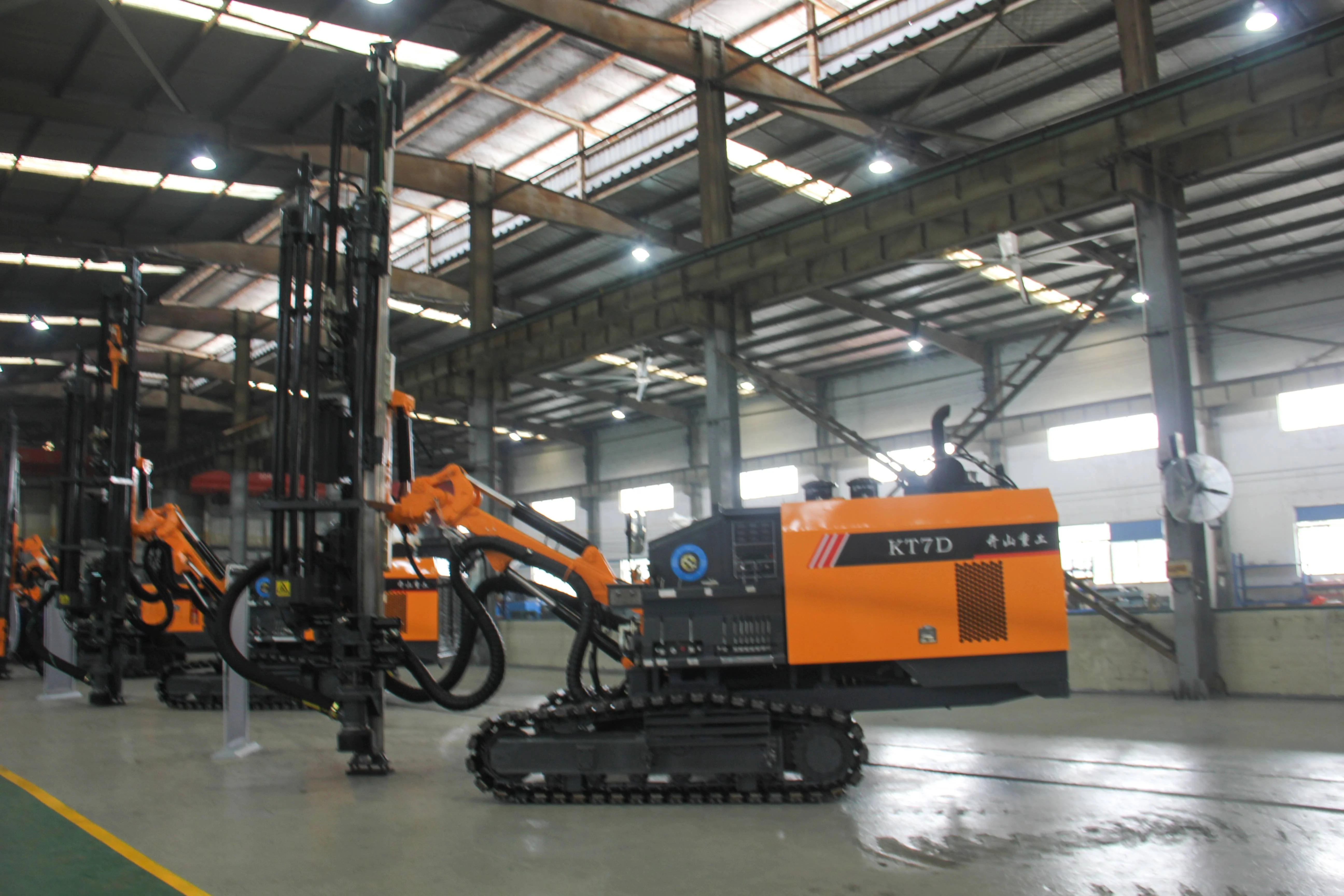

The KT7D integrated down the hole drill rig for open use is an advanced drilling device integrating the down the hole drilling system and screw air compressor system, it is capable of drilling vertical, inclined and horizontal holes, mainly used for open-pit mine. stonework blast holes and pre-splitting holes. Equipped with the Yuchai Engine, high strength aluminum alloy propulsion beam , automatic rod handling system, drill pipe lubrication module and efficient dust collection system, the drill rig meets national standards for emissions and environment. It is typical of energy conservation, efficiency, safety, environment-friendliness, flexibility, simple operation and stable performance, etc.

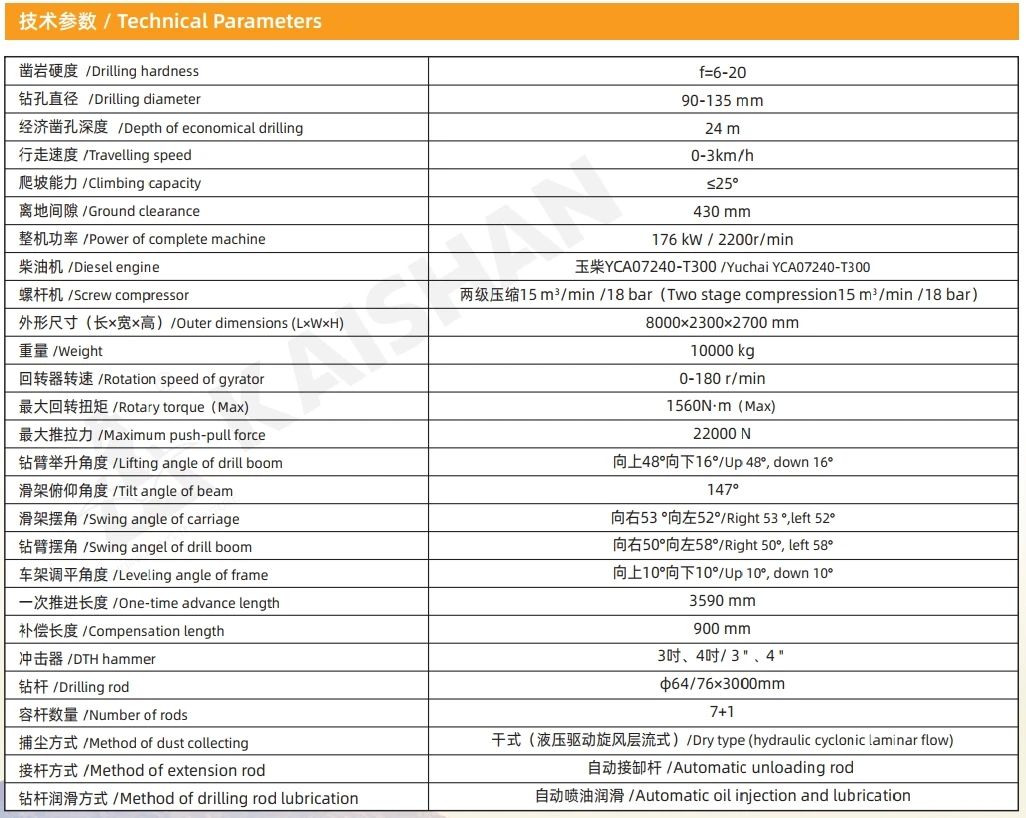

Model |
KT7D |
Manufacturer |
KAISHAN |
Drilling hardness |
f=6-20 |
Drilling diameter |
90-135mm |
Drilling depth |
24m |
Weight |
10000kg |
Dimension |
8000*2300*2700mm |
