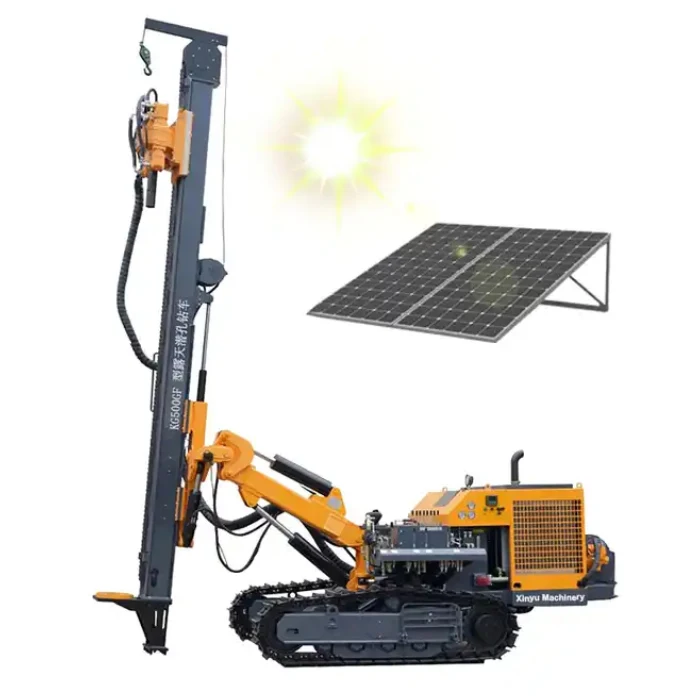

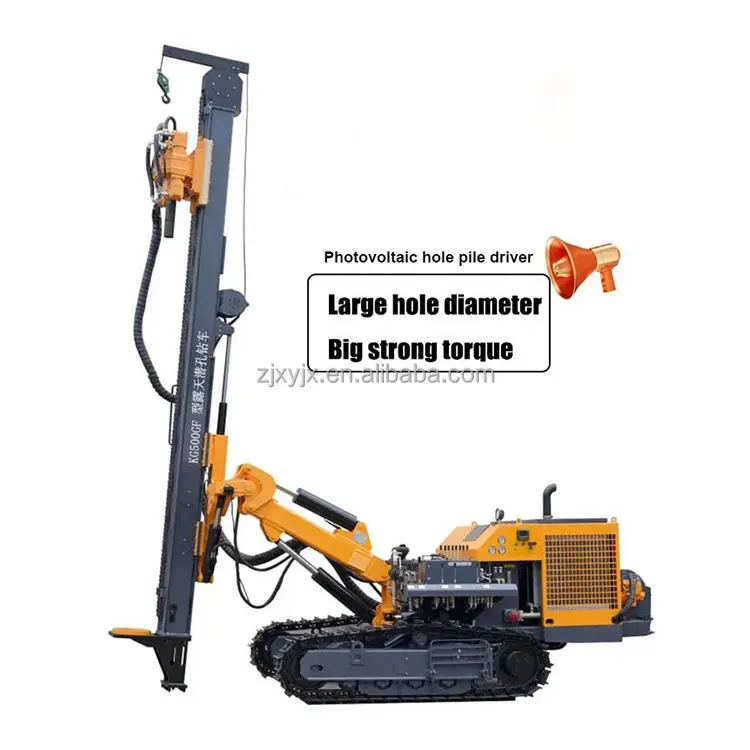

Designed for photovoltaic foundation pile holes, it is equipped with an 86KW engine and a highly efficient desert air filter, with a maximum hole diameter of up to 500mm.
Please contact us to server you!">
Model |
|
Weight |
7500kg |
Outer size |
6680*2450*2710mm |
Rock hardness |
f=6~20 |
Drilling diameter |
185-500mm |
Rotary speed |
0-80 rpm |
Rotary torque(Max) |
12000 N.m(Max) |
Lifting force |
25KN |
Lifting system |
Motor and roller chain |
Feeding stoke |
4275mm |
Walking speed |
0-3Km/h |
Engine |
Yuchai DKC940 |
Supporting power |
86KW/2200 r/min |
Ground clearance |
440mm |
Slide frame compensation length |
1200mm |
6-12 inch |
|
Drill rod |
102*1.5m |
Air consumption |
15*45 m3/min |
